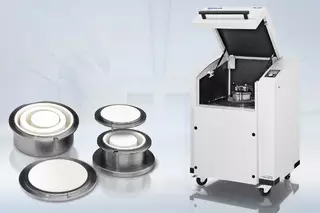

Schijventrilmolen RS 200 Technische Gegevens
| Applications: | size reduction, mixing, triturating |
|---|---|
| Field of application: | construction materials, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material: | medium-hard, hard, brittle, fibrous |
| Size reduction principle: | pressure, friction |
| Max. feed size: | < 15 mm |
| Final fineness: | < 20 µm |
| Batch size / feed quantity: | 15- 250 ml depending on size of grinding set |
| Speed at 50 Hz (60 Hz): | 700 - 1,500 min-1, continuously adjustable |
| Material of grinding tools: | hardened steel, tungsten carbide, agate, zirconium oxide, steel 1.1740 (for heavy-metal free grinding) |
| Grinding jar sizes: | 50 ml / 100 ml / 250 ml |
| Setting of grinding time: | digital, 00:01 to 99:59 |
| Storable SOPs: | 10 |
| Drive: | 3-phase asynchronous motor with frequency converter |
| Drive power: | 1.5 kW |
| Electrical supply data: | different voltages |
| Power connection: | 1-phase |
| Protection code: | IP 20 |
| W x H x D closed: | 836 x 1220 x 780 mm |
| Net weight: | ~ 225 kg (without grinding set) |
| Standards: | CE |
