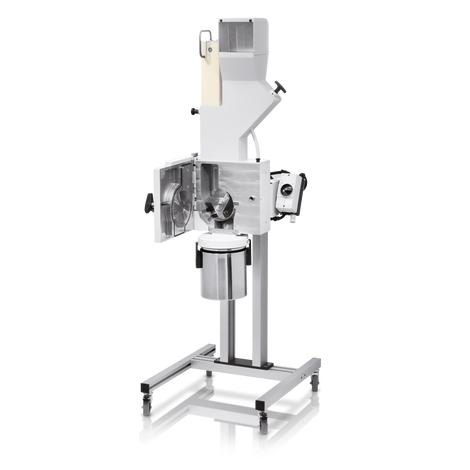

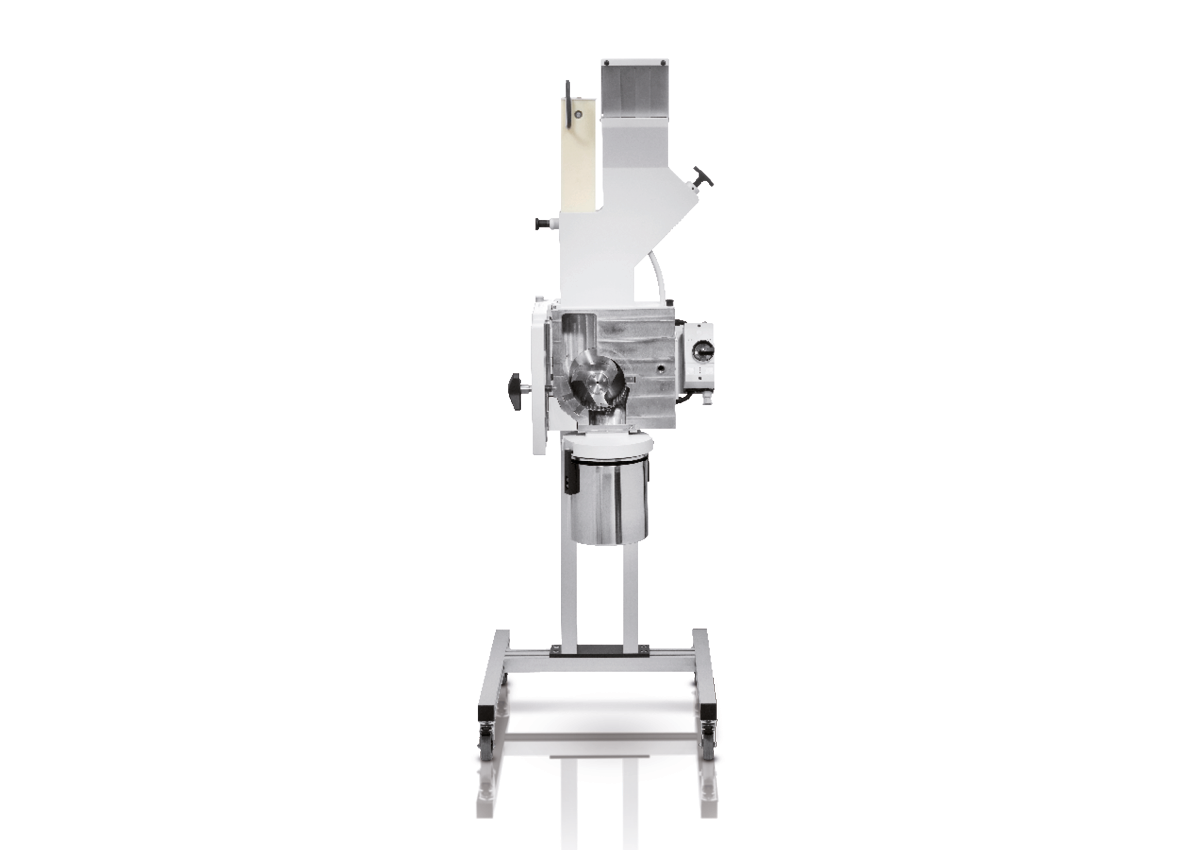

Cutting Mill SM 100 The budget-priced basic model
Cutting mills are the first choice for the size reduction of soft, medium-hard, tough, elastic, fibrous, and heterogeneous mixes of products.

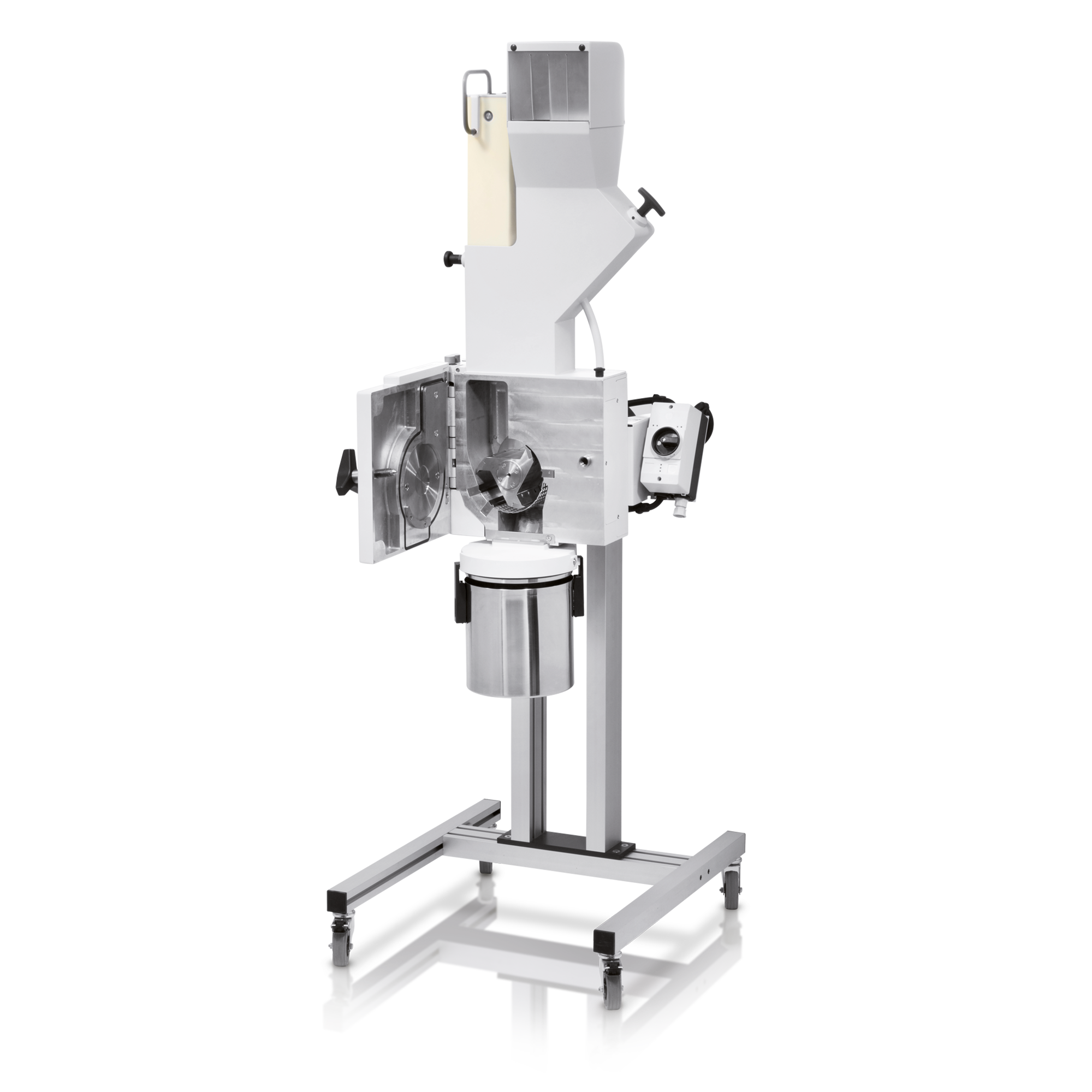

The SM 100 is the budget-priced basic model among the RETSCH cutting mills. It is suitable for the size reduction of samples which don’t require extremely high forces. The mill has been specially designed for routine applications. It is easy to operate and can be mounted on a solid table or on the optional base frame.
ich bin text
Typical Sample Materials
Cutting Mill SM 100 Typical Sample Material
RETSCH cutting mills are suitable for a vast range of applications. Typical materials include PET preforms, aluminium slag, animal feed, bones, cables, cardboard, electronic components, feed pellets, foils, food, leather, lignite, material mixtures, non-ferrous metals, paper, pharmaceutical products, plant materials, plastic toys, plastics, polymers, refuse derived fuels, resins, rubber, spices, straw, textiles, waste, wood, etc.
Cement
Fish
Nuts
For routine applications
- Feed size < 60 x 80 mm
- Defined final fineness due to bottom sieves with aperture sizes from 0.25 - 20 mm
- Quick and easy cleaning due to smooth surfaces and push-fit rotor
- Gravity outlet for collection vessels of different sizes
- Wide range of accessories including various hoppers, collection systems, rotors and sieves
- Highest safety standards
Typical Sample Materials
Cutting Mill SM 100 Accessories for safe and effective grinding processes

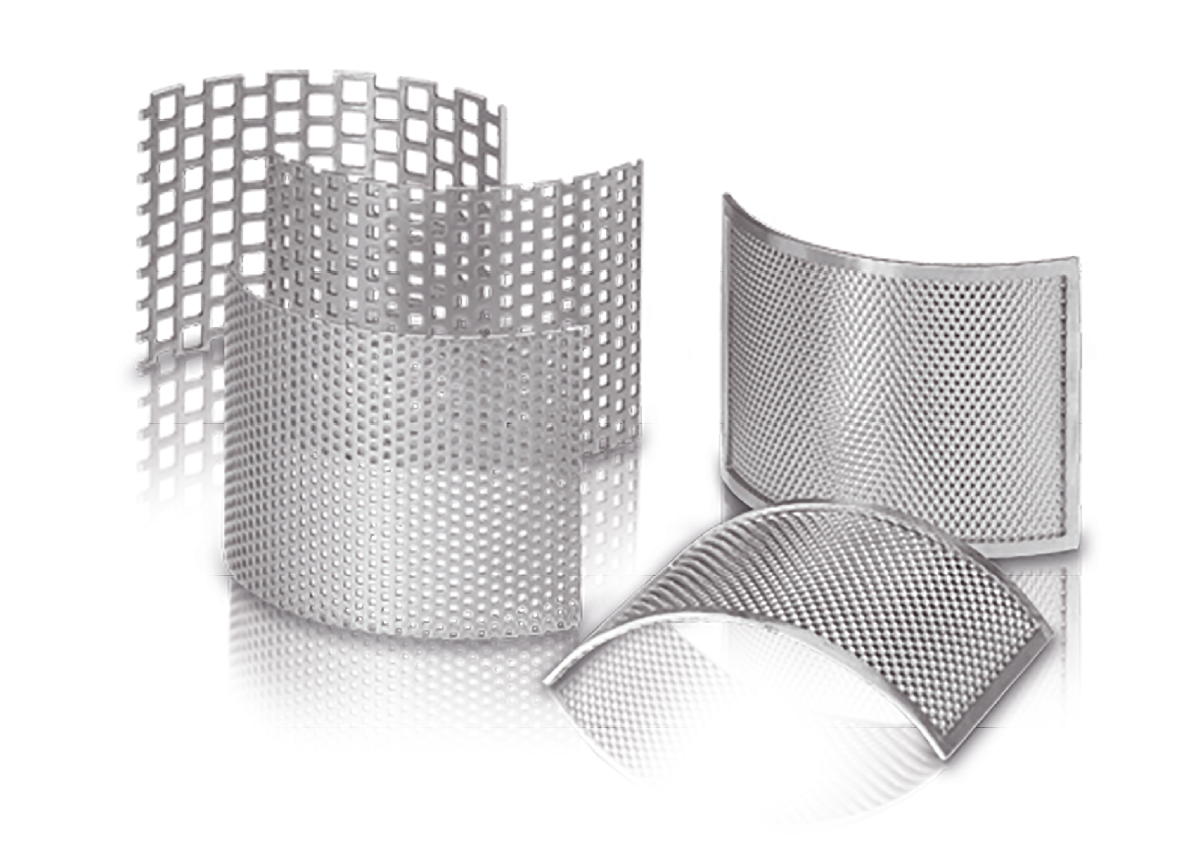

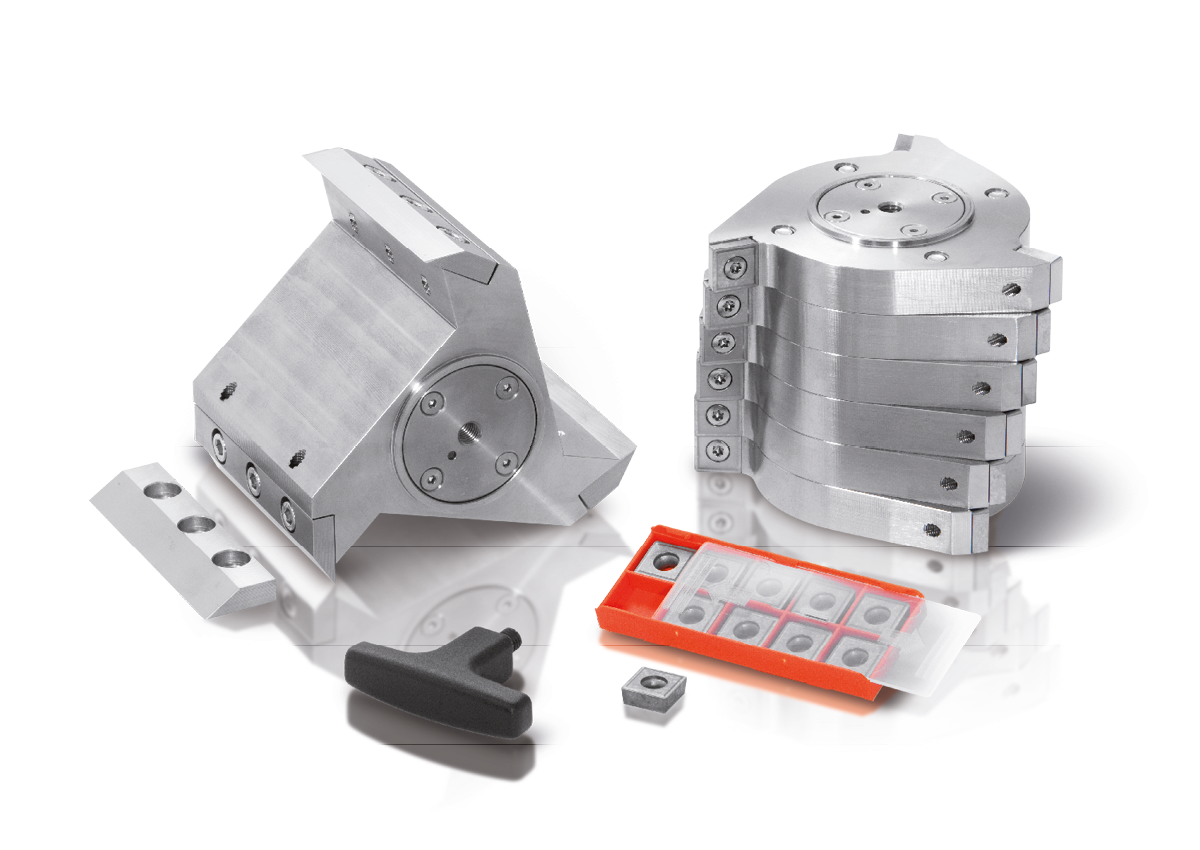

The SM 100 can be equipped with different rotors, hoppers and bottom sieves. The mill and accessories, including cutting bars and cutting plates, are also available in versions for heavy-metal-free size reduction.
Functional Principle

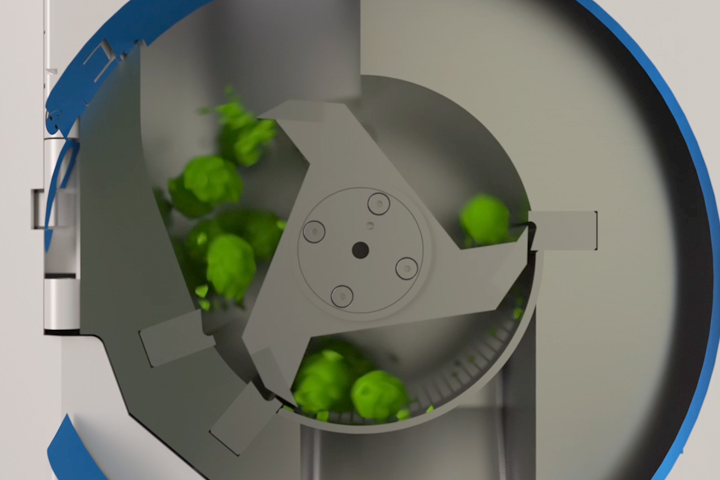

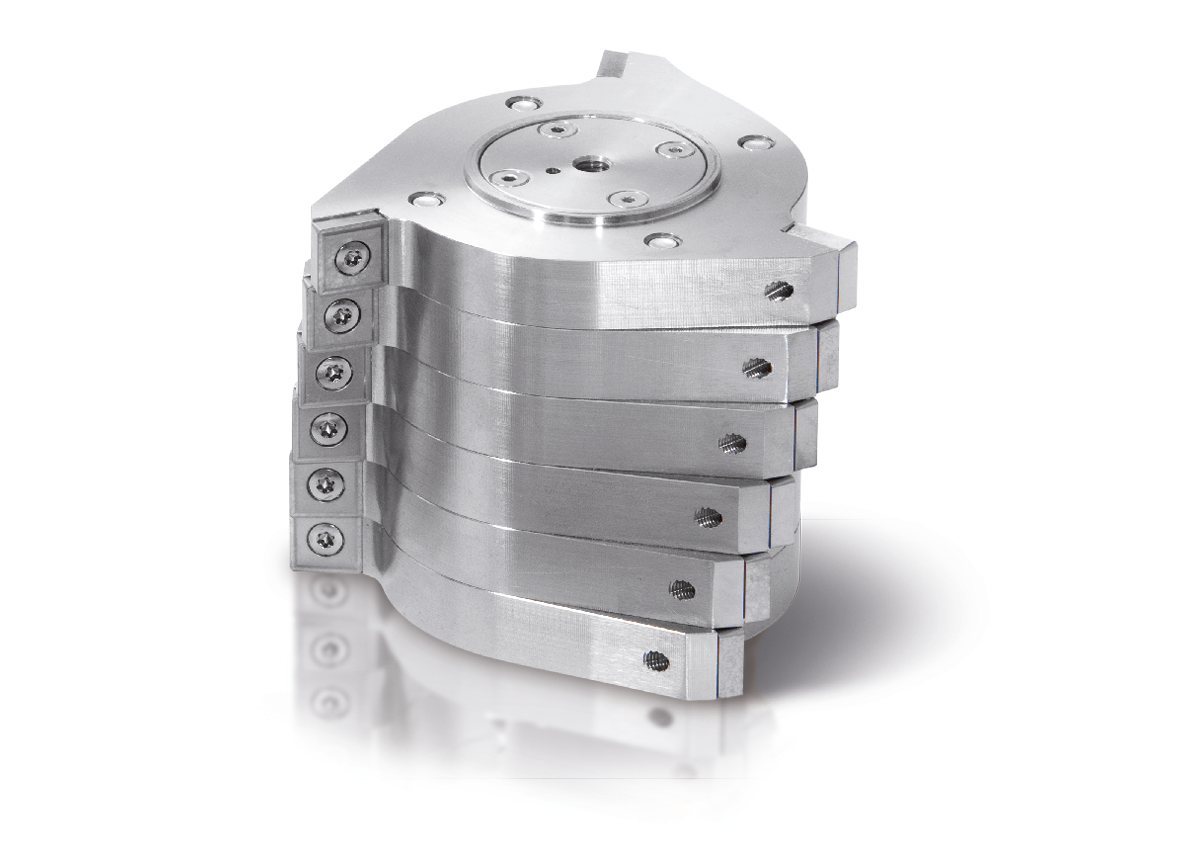

Size reduction in the Cutting Mill SM 100 takes place by cutting and shearing forces. The sample comes into contact with the rotor, and is comminuted between the blades and the stationary standard cutting bars inserted in the housing. In the 6-disc rotor, spirally arranged reversible hard metal plates operate by cutting in sequence. The knives of the parallel section rotor carry out comminution with a powerful cutting action. The dwelling time of the sample in the chamber is short; as soon as it is small enough to pass through the openings of the bottom sieve it is discharged through the gravity outlet and collected in the receptacle. The rotor speed of 1.500 min-1 ensures gentle and rapid size reduction.
Cutting Mill SM 100 Technical Data
| Applications: | size reduction by cutting |
|---|---|
| Field of application: | agriculture, biology, chemistry / plastics, engineering / electronics, environment / recycling, food, medicine / pharmaceuticals |
| Feed material: | soft, medium-hard, elastic, fibrous |
| Size reduction principle: | shearing, cutting |
| Max. feed size: | < 60 x 80 mm |
| Final fineness: | 0.25 - 20 mm |
| Speed at 50 Hz (60 Hz): | 1,500 min-1 |
| Rotor peripheral speed: | 9.4 - 11.4 m/s |
| Rotor diameter: | 129.5 mm |
| Types of rotors: | parallel section rotor / 6-disc rotor |
| Types of hoppers: | standard, long stock |
| Material of grinding tools: | stainless steel, steel for heavy-metal free grinding, tungsten carbide |
| Sieve sizes: | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm // square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Collector systems /capacities: | collecting receptacle 5 l / optional: 30 l // collecting unit 0.25 / 0.5 l |
| Drive: | 3-phase motor |
| Drive power: | 1,5 kW |
| Electrical supply data: | different voltages |
| Power connection: | 3-phase |
| Protection code: | IP 54 |
| W x H x D closed: | 582 x 1675 x 700 mm (with base frame and standard hopper) |
| Net weight: | ~ 73 kg without hopper, rotor and base frame |
| Standards: | CE |
