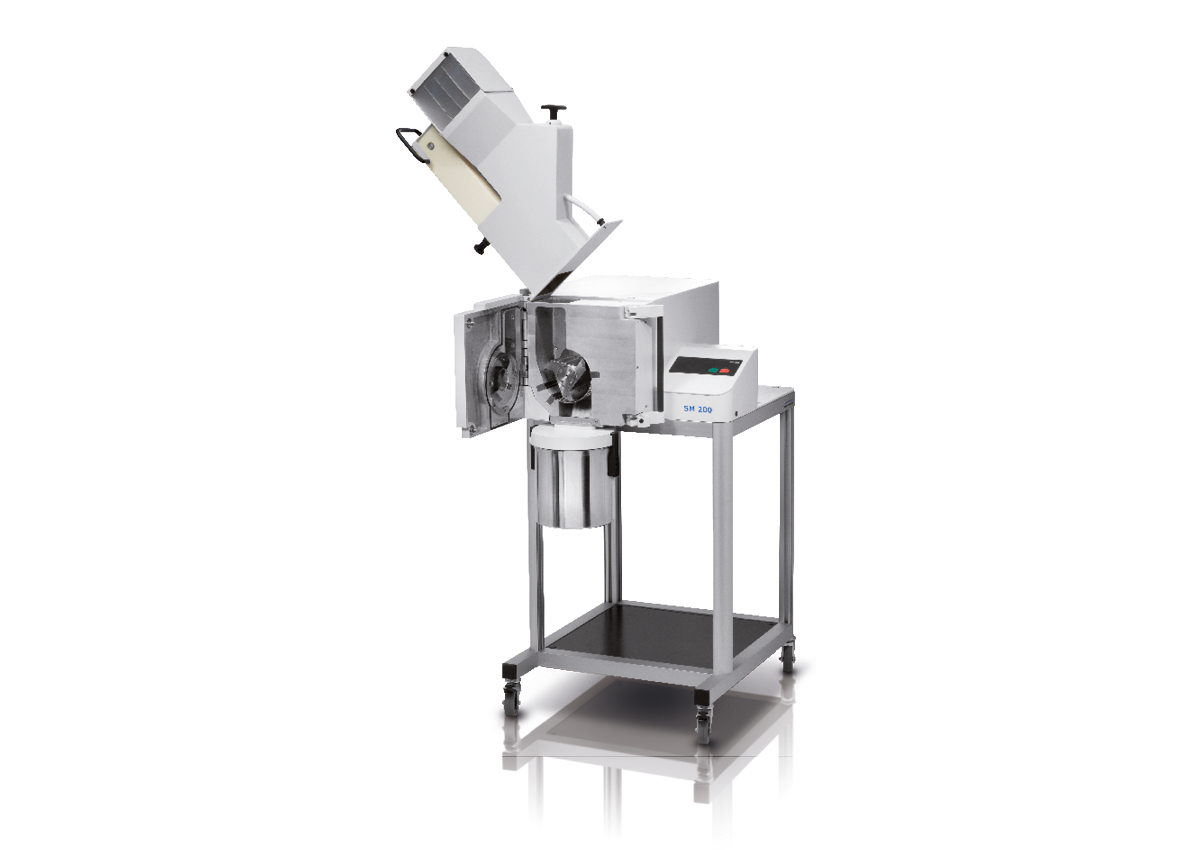

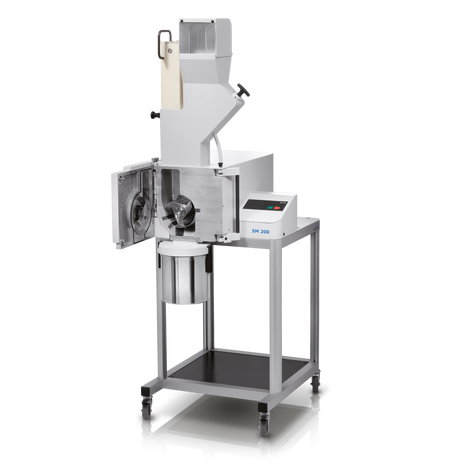

Cutting Mill SM 200 Technical Data
| Applications: | size reduction by cutting |
|---|---|
| Field of application: | agriculture, biology, chemistry / plastics, engineering / electronics, environment / recycling, food, medicine / pharmaceuticals |
| Feed material: | soft, medium-hard, tough, elastic, fibrous |
| Size reduction principle: | shearing, cutting |
| Max. feed size: | < 60 x 80 mm |
| Final fineness: | 0.25 - 20 mm |
| Speed at 50 Hz (60 Hz): | 1,500 min-1 |
| Rotor peripheral speed: | 9.4 - 11.4 m/s |
| Rotor diameter: | 129.5 mm |

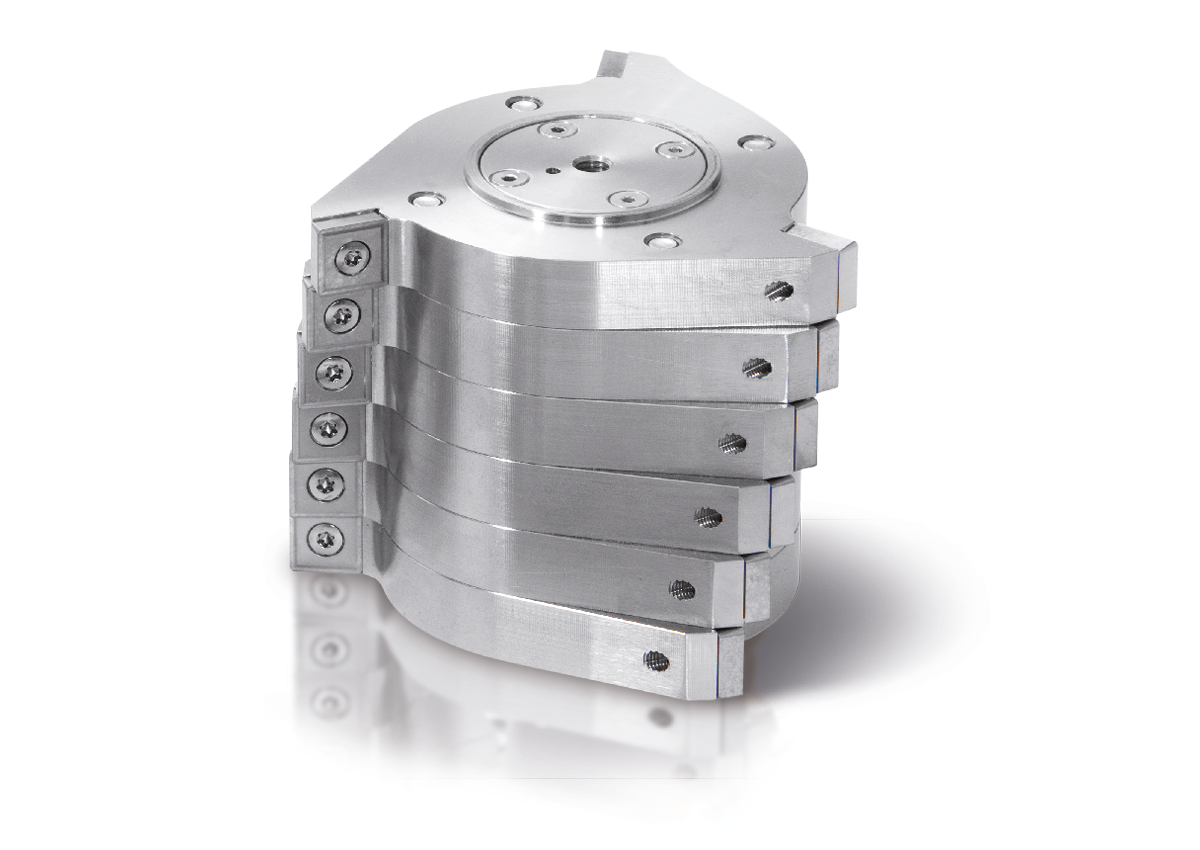

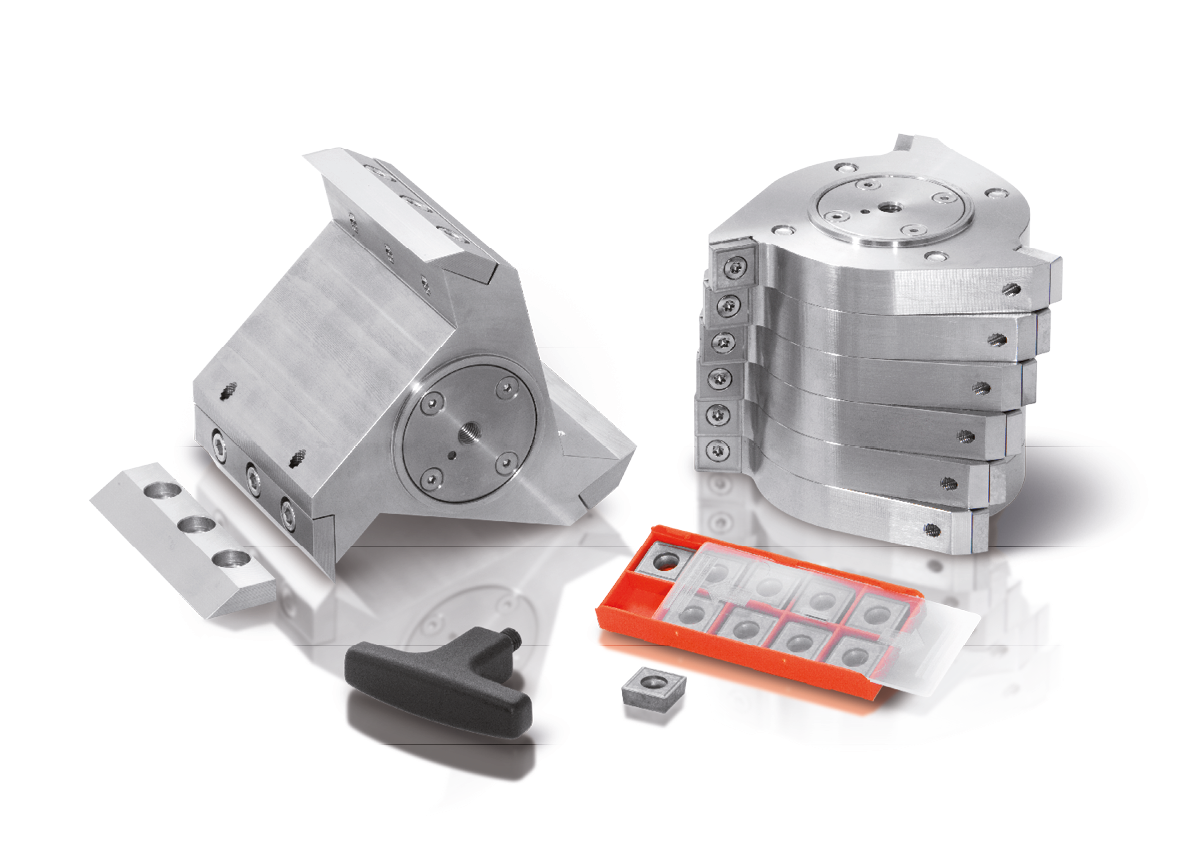

| Types of rotors: | parallel section rotor / 6-disc rotor |
| Types of hoppers: | standard, long stock |
| Material of grinding tools: | stainless steel, steel for heavy-metal free grinding, tungsten carbide |
| Sieve sizes: | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm // square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Collector systems /capacities: | collecting receptacle 5 l / optional: 30 l // collecting unit 0.25 / 0.5 l // cyclone-suction combination (0.25 l - 30 l) |
| Drive: | 3-phase motor |
| Drive power: | 2.2 kW |
| Electrical supply data: | different voltages |
| Power connection: | 3-phase |
| Engine brake: | yes |
| Protection code: | IP54 |
| W x H x D closed: | 576 (1090 opened) x 1675 x 760 mm (with base frame and standard hopper) |
| Net weight: | ~ 90 kg without hopper |
| Standards: | CE |
