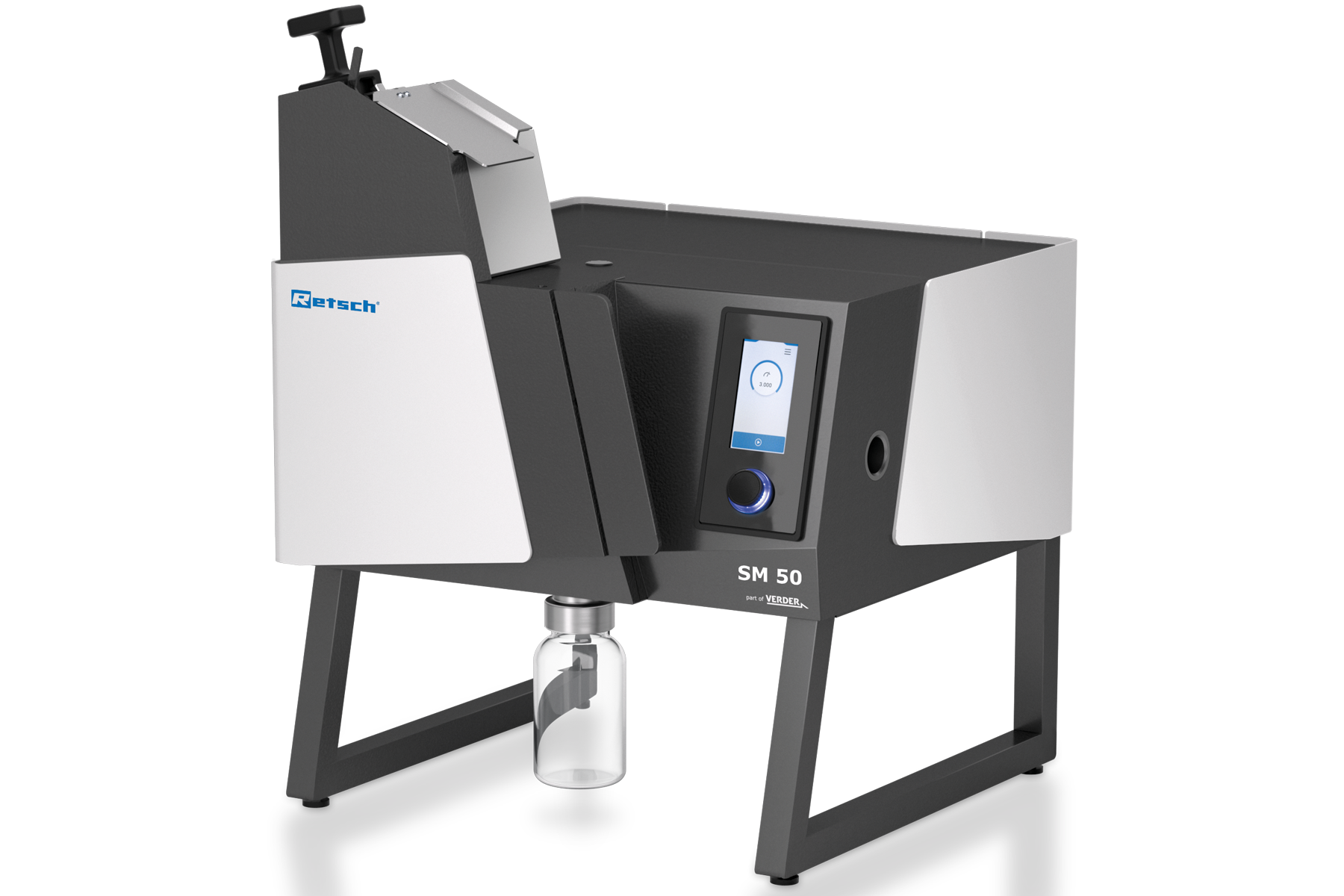

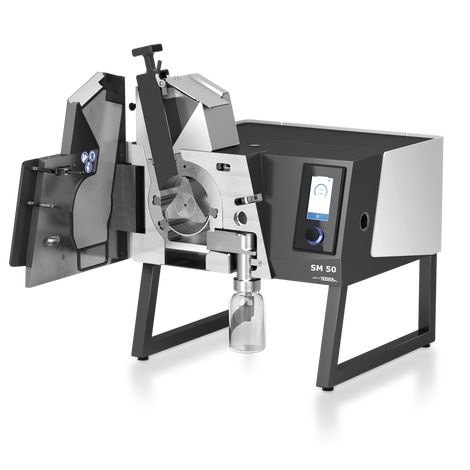

Cutting Mill SM 50 Technical Data
| Applications: | size reduction by cutting |
|---|---|
| Field of application: | agriculture, chemicals / plastics, electronics, environmental / recyling, food / feed, pharma / biotech / medtech, construction materials, power generation / energy |
| Feed material: | soft, medium-hard, tough, elastic, fibrous |
| Size reduction principle: | shearing, cutting |
| Max. feed size: | 50 mm |
| Final fineness: | 0.25 - 10 mm |
| Speed at 50 Hz (60 Hz): | 500 - 4,000 min-1 |
| Rotor peripheral speed: | 4.3 - 27.1 m/s |
| Rotor diameter: | 129.5 mm |

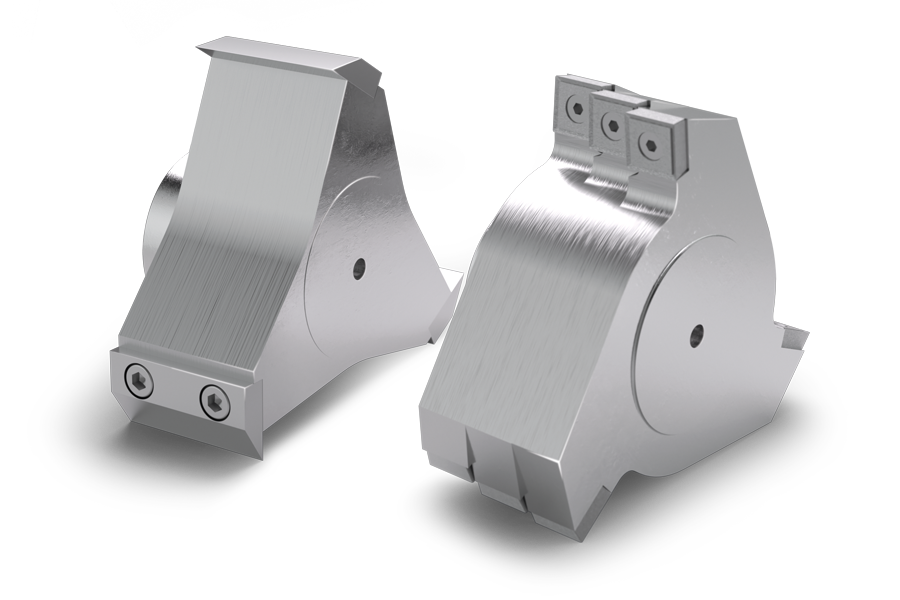

| Types of rotors: | parallel section rotor / 3-disc rotor |
| Types of hoppers: | EasyInspect hopper |
| Material of grinding tools: | stainless steel, steel for heavy-metal free grinding |
| Sieve sizes: | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 mm // square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 mm |
| Collector systems /capacities: | collecting glass 0.25 / 0.5 l (not for gravity chamber) and collecting receptacle 3 l |
| Drive: | 3-phase asynchronous motor with frequency converter |
| Drive power: | 1.5 kW |
| Electrical supply data: | 100 V, 110 V, 120 V, 20 A// 200-230 V, 10 A |
| Power connection: | 1-phase |
| Engine brake: | yes |
| Protection code: | IP 20 |
| W x H x D closed: | 565 x 750 x 530 (with base frame and hopper) |
| Net weight: | 80 kg |
| Standards: | CE |
