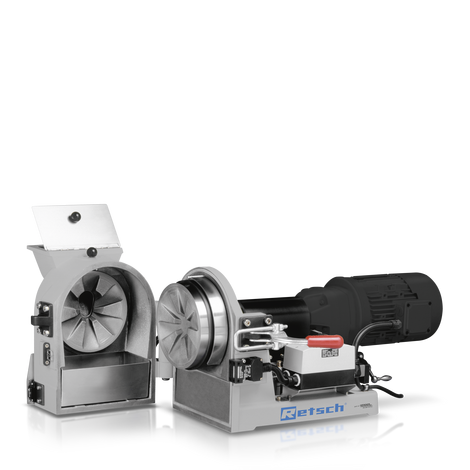

Disc Mill DM 200 Technical Data
| Applications: | preliminary and fine grinding |
|---|---|
| Field of application: | chemistry / plastics, construction materials, engineering / electronics, geology / metallurgy, glass / ceramics |
| Feed material: | medium-hard, hard, brittle |
| Size reduction principle: | pressure, friction |
| Max. feed size: | < 20 mm |
| Final fineness: | 50 µm for hardened steel discs|100 µm for tungsten carbide or zirconium oxide discs |
| Speed at 50 Hz (60 Hz): | 440 min-1 (528 min-1) |
| Material of grinding tools: | zirconium oxide, hardened steel, tungsten carbide, manganese steel |
| Gap width setting: | continuous, 0.05 - 5 mm |
| Rotating direction: | doubling the life time of the discs by changing the direction of rotation |
| Collector capacity: | 2.5 l |
| Drive: | 3-phase geared motor |
| Drive power: | 1.5 kW |
| Electrical supply data: | different voltages |
| Power connection: | 3-phase |
| Protection code: | IP 55 |
| W x H x D closed: | 440 x 400 x 870 mm |
| Net weight: | ~ 140 kg |
| Standards: | CE |
