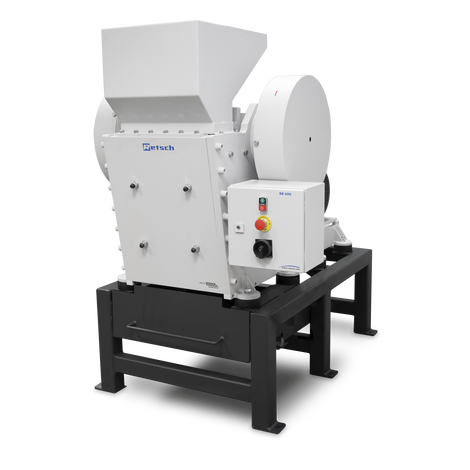

The Jaw Crusher BB 600 is specifically designed for accepting large feed sizes up to 350 x 170 mm. The gap width can be set stepless from 6 - 60 mm. Depending on the sample material, particle sizes down to 6 mm can be obtained in one working run, resulting in an excellent crushing ratio of 25. A throughput of up to 3500 kg/h is possible with the BB 600.
The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.
Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.
Robust & Versatile
- Excellent crushing ratio
- Continuous gap width setting
- High throughput up to 3500 kg/h
- Removable hopper with splash-back protection
- Suitable for continuous and batchwise crushing

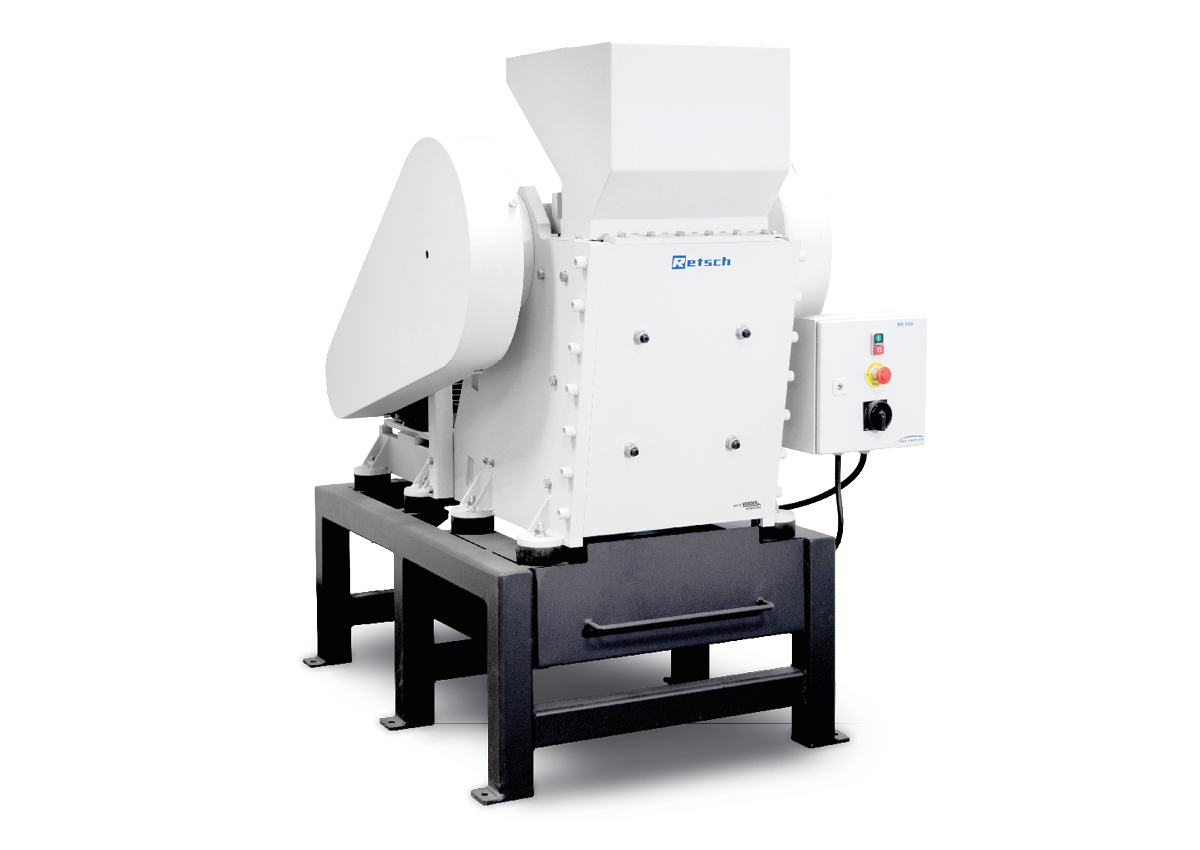

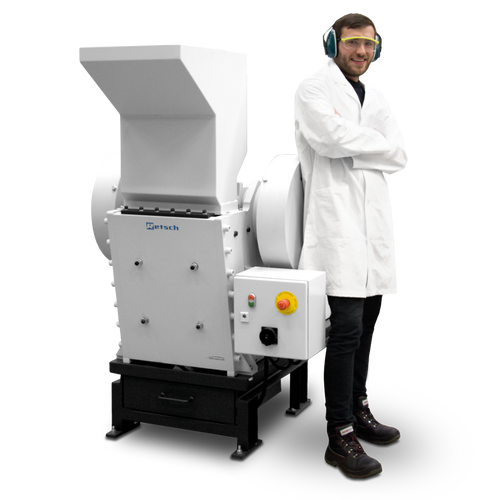

Jaw Crusher BB 600 Superiority in detail
The BB 600 achieves a throughput of up to 3,500 kg per hour. For batchwise processing, the jaw crusher is equipped with a 30 l collecting receptacle.
Further features like overload protection and a feed hopper with splash-back protection make working with the BB 600 convenient and safe.
The breaking jaws for the BB 600 are sized 400 x 600 mm and are available in
- manganese steel
- steel for heavy-metal-free grinding
- NiHard4 steel.

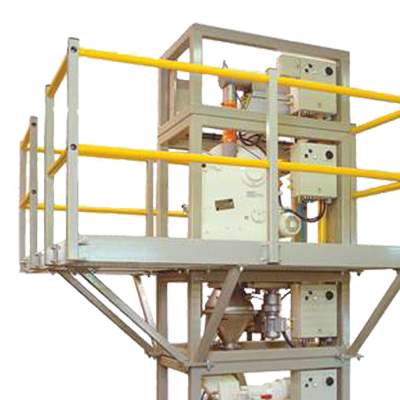

Jaw Crusher BB 600 Process-line version

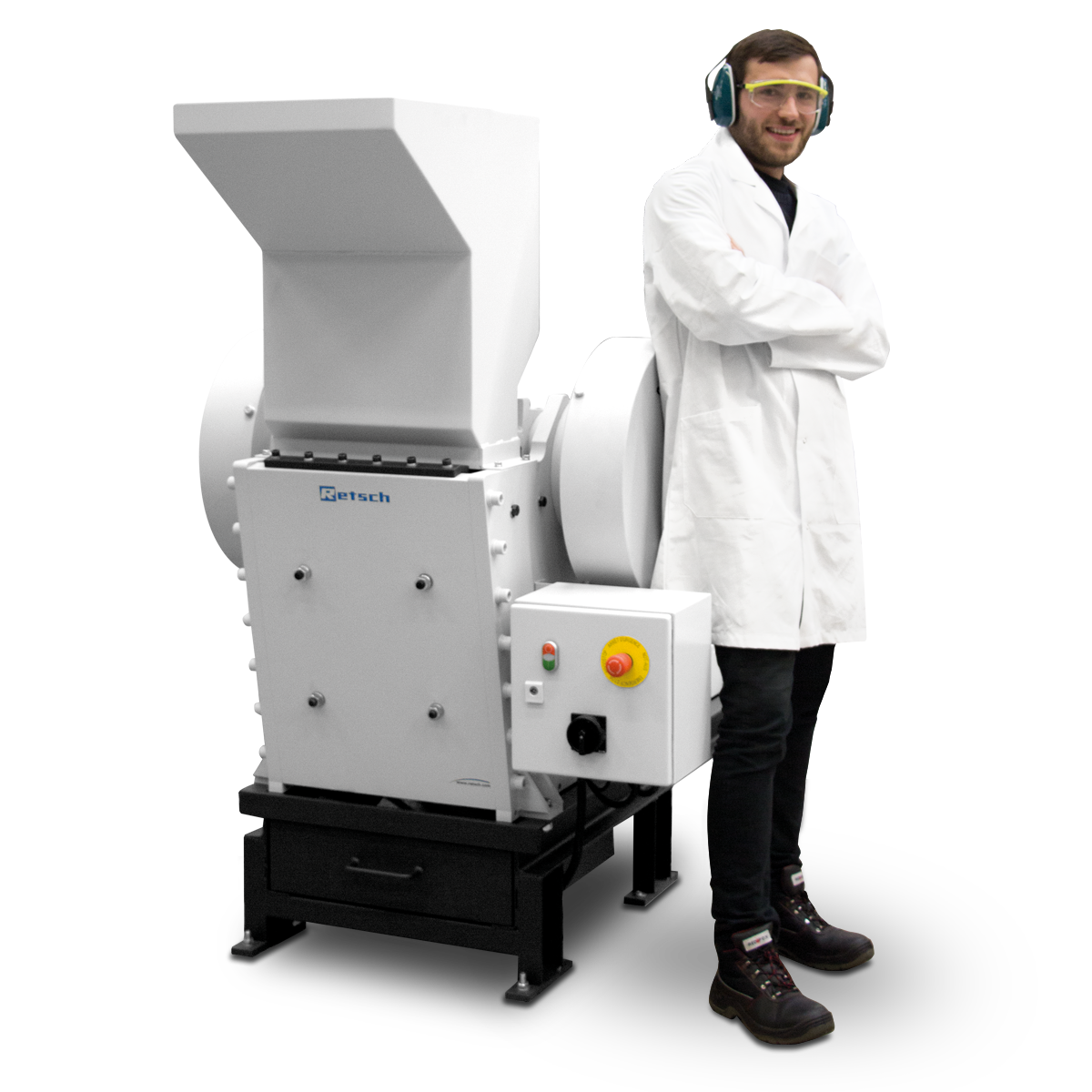

Due to the low installation height of 1 meter the BB 600 is ideally suited for continuous operation in automatic installations and sampling stations.
Thanks to the compact design of the BB 600 it may replace a jaw crusher in existing installations.
Jaw Crusher BB 600 Typical Sample Materials
RETSCH’s powerful jaw crushers are ideally suited for preliminary crushing of construction materials, ores, granite, oxide ceramics, quartz, slag, silicon, coal, tungsten alloys, cement clinker, etc.
To find the best solution for your sample preparation task, visit our application database.
Jaw Crusher BB 600 Functional Principle
The Jaw Crusher BB 600 is a robust and powerful jaw crusher.
The feed material passes through the no-rebound hopper and enters the crushing chamber.Size reduction takes place in the wedge-shaped area between the fixed breaking jaw and the moveable breaking jaw driven by an eccentric drive shaft. The elliptical motion crushes the sample which then moves downwards under gravity.
On reaching the discharge gap width, it falls into a removable collector or, for continuous applications, on a conveyor belt, vibratory feeder or sampler.
Jaw Crusher BB 600 Technical Data
| Applications: | coarse and pre-crushing |
|---|---|
| Field of application: | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material: | medium-hard, hard, brittle, tough |
| Size reduction principle: | pressure |
| Max. feed size: | < 110 mm |
| Final fineness: | 90% < 0.5 mm |
| Throughput: | 500 kg/h |
| Material of grinding tools: | manganese steel, NiHard 4 |
| Jaw width: | 250 x 130 mm |
| Gap width setting: | 0 - 11 mm |
| Gap width display: | scale |
| Hinged hopper: | yes |
| Dust extraction unit: | yes |
| Central lubrication: | no |
| Process line version: | optional |
| Collector capacity: | 15 l |
| Drive: | 3-phase motor |
| Drive power: | 7.5 kW |
| Electrical supply data: | different voltages |
| Power connection: | 3-phase |
| Protection code: | IP 55 |
| W x H x D closed: | 930 x 1400 x 1080 mm |
| Net weight: | ~ 1000 kg |
| Standards: | CE |
