Cross Beater Mill SK 300 Technical Data
| Applications: | size reduction |
|---|---|
| Field of application: | agriculture, chemistry / plastics, construction materials, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material: | medium-hard, brittle |
| Max. feed size: | < 25 mm |
| Final fineness: | < 100 µm |
| Speed at 50 Hz (60 Hz): | 2000 - 4000 min-1 (in steps of 200 min-1) |
| Speed setting: | yes |
| Rotor peripheral speed: | 15.5 m/s .. 31 m/s |

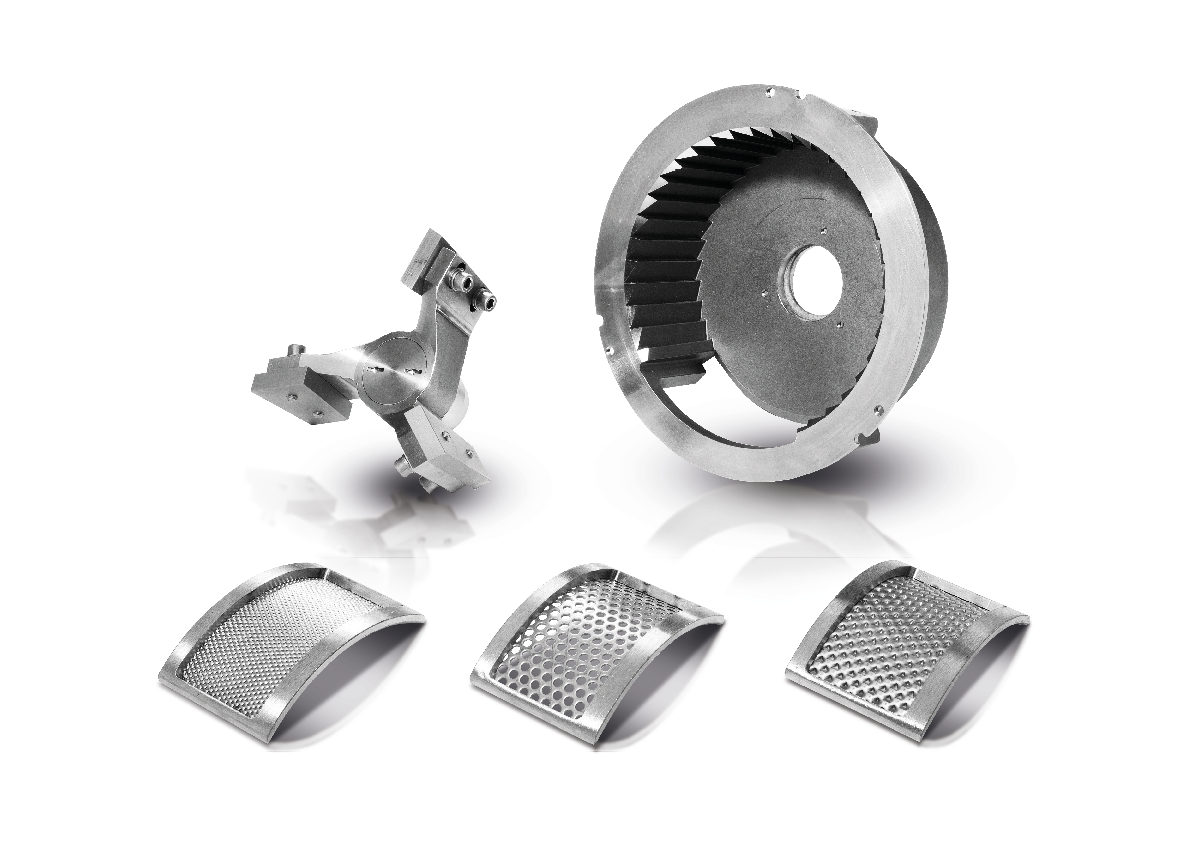

| Types of rotors: | stainless steel / cast iron |
| Material of grinding tools: | hardened steel, stainless steel, cast iron, steel 1.1740 (for heavy-metal free grinding) |

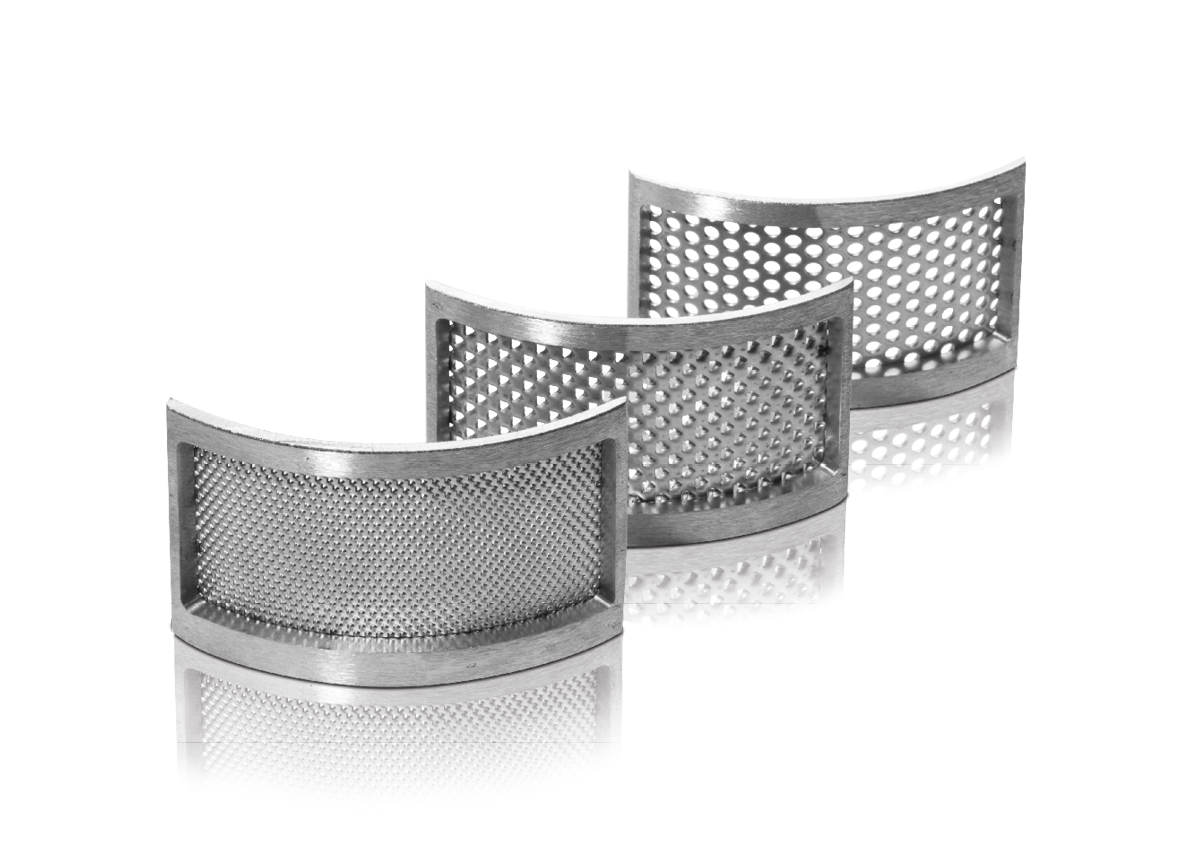

| Sieve sizes: | trapezoid holes 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm // round holes 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm |

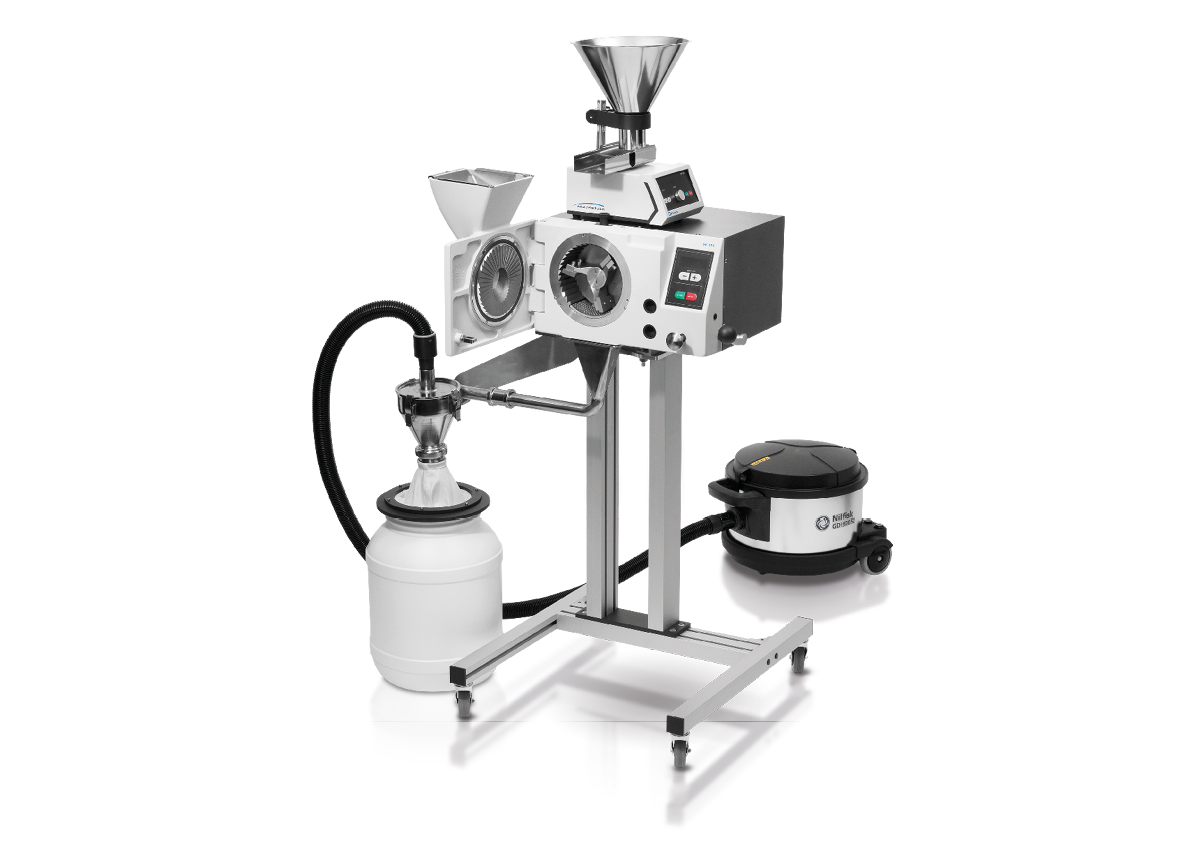

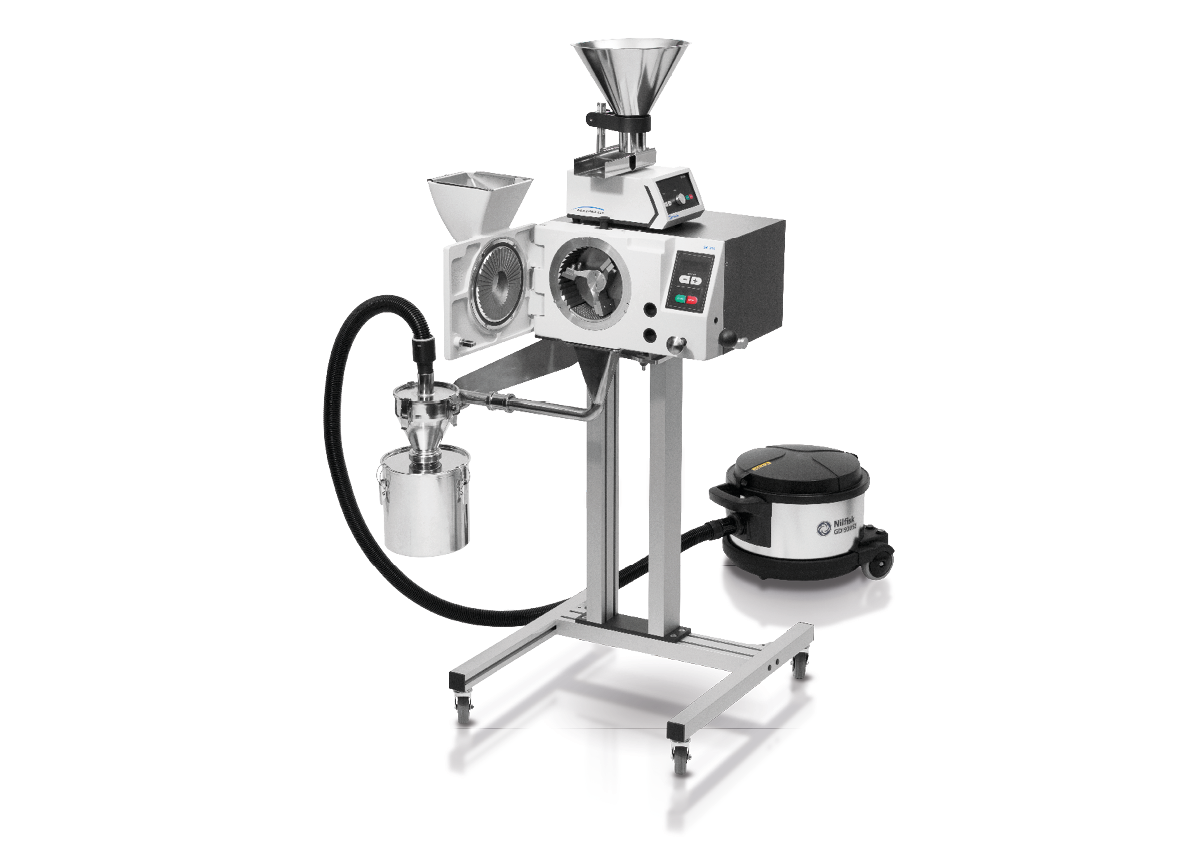

| Dust extraction unit: | optional cyclone |
| Collector capacity: | 5 l / optional: 30 l |
| Drive: | 3-phase motor with frequency converter |
| Drive power: | 1.1 kW |
| Electrical supply data: | 200-240 V, 50/60 Hz |
| Power connection: | 1-phase |
| Protection code: | IP 41 |
| Power consumption: | 1.5 kW |
| W x H x D closed: | 600 x 1200 x 700 mm (with base frame) |
| Net weight: | ~ 60 kg (with base frame) |
| Remark weight (without hopper etc.): | ~ 50 kg (without base frame) |
| Standards: | CE |
