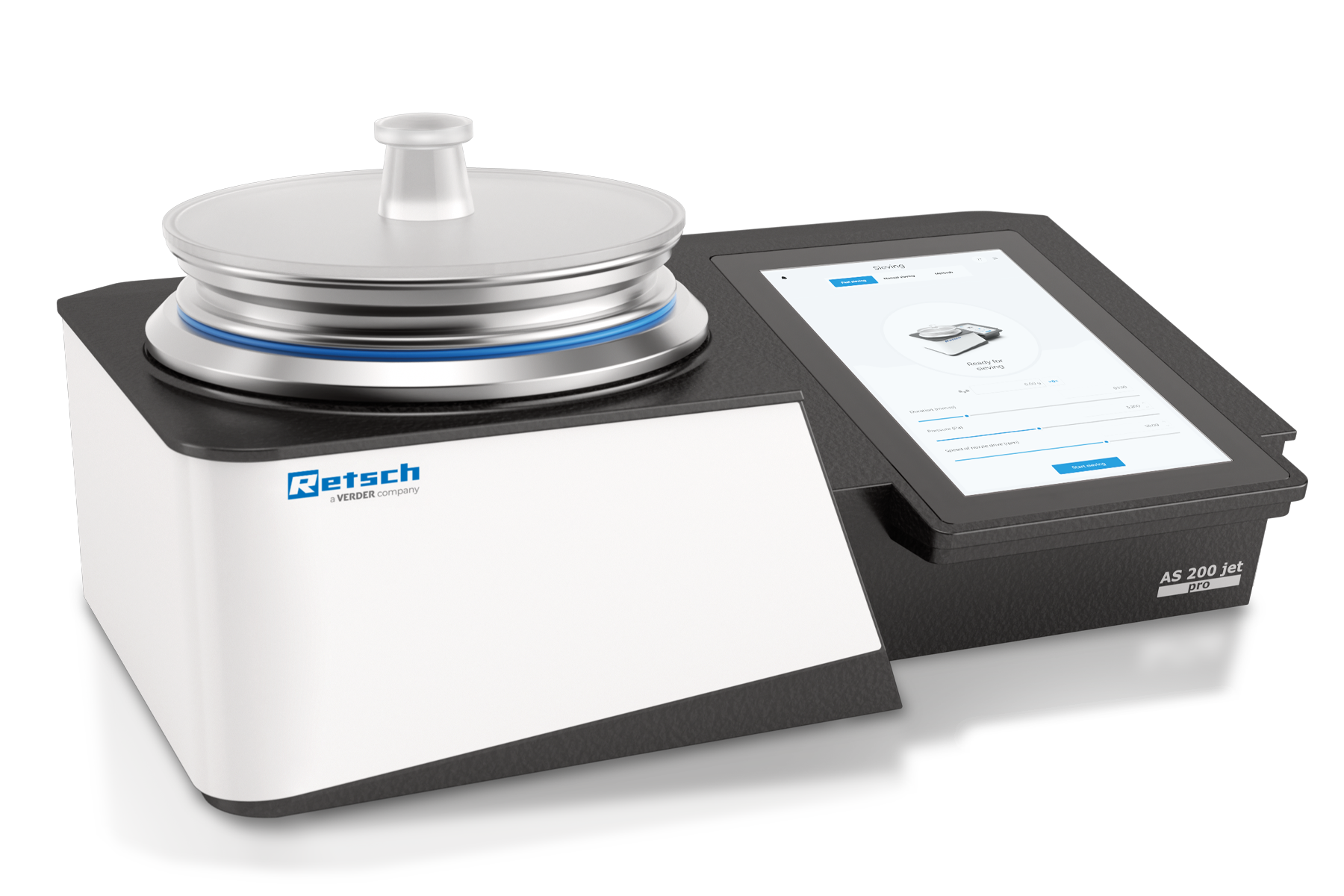

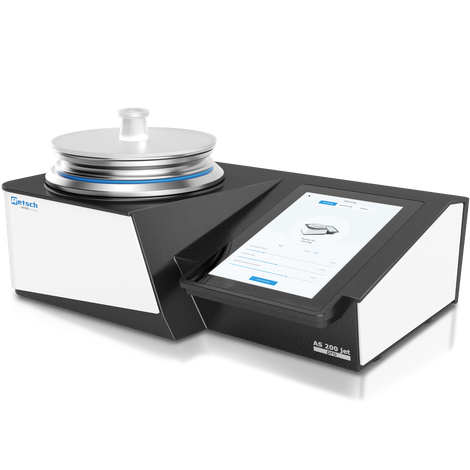

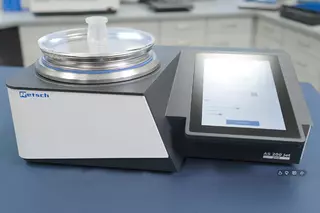

Air Jet Sieving Machines AS 200 jet pro /
AS 200 jet pharma
Technical Data
| Applications: |
separation, fractioning, particle size determination |
| Field of application: |
chemistry / plastics, construction materials, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals, ... |
| Feed material: |
powders |
| Measuring range: |
10 µm - ~ 4 mm |
| Sieving motion: |
dispersion by air jet |
| Typical. batch / feed capacity: |
0.3 - 100 g |
| Max. number of fractions: |
1 (by using a cyclone: 2) |

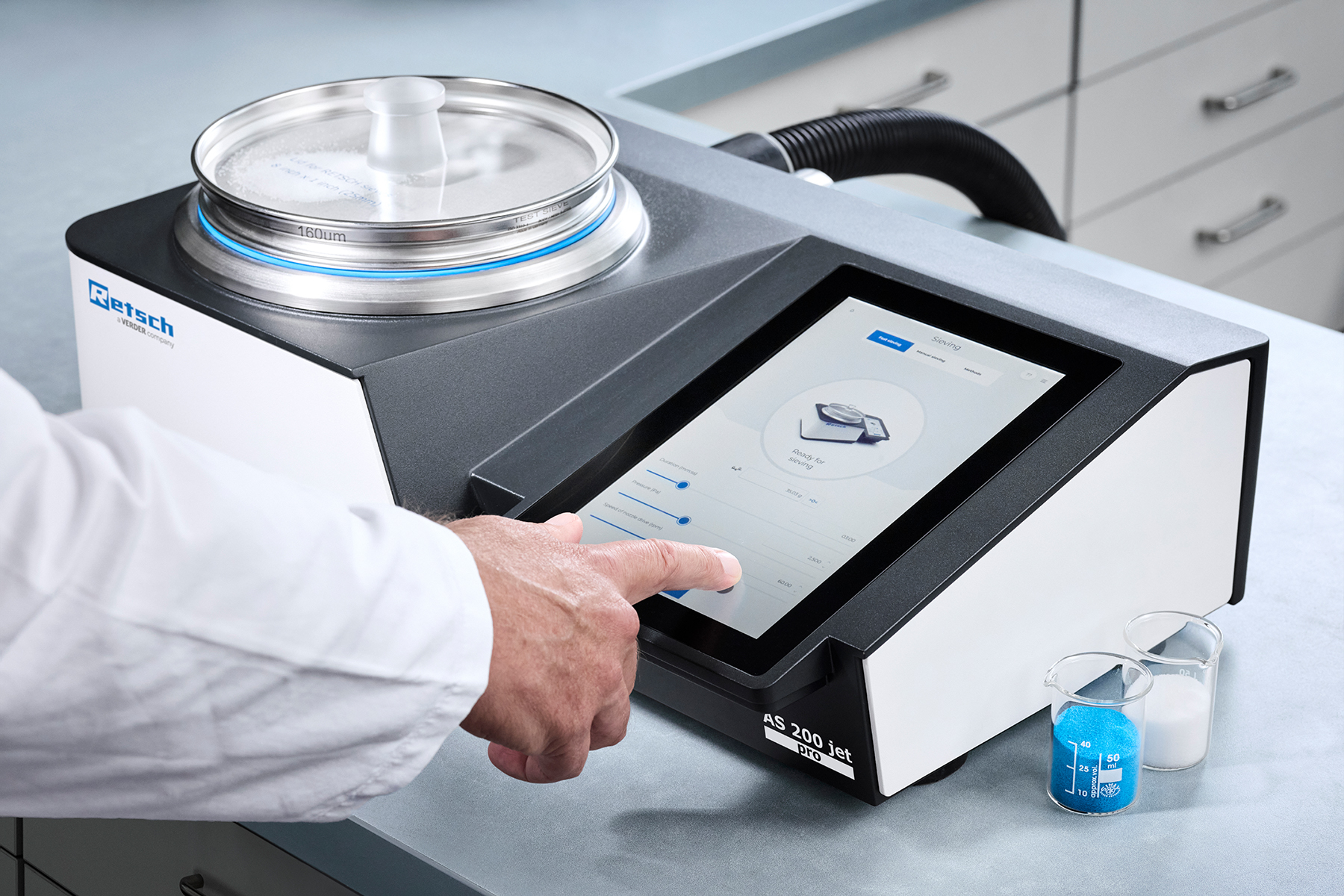

| Touch screen |
Yes with 10.1“ display |
| Speed |
digital, 5 – 80 min-1 (nozzle) |
| Time display |
digital, 00:30 – 15:00 min |
| Integrated balance |
Yes, with reading accuracy 0.01 g and calibration accuracy 0.1 g |
| Vacuum |
2,000-6,500 Pa / 20-65 mbar / 0.3-0.95 psi |
| Digital parameter setting |
Yes, software included, pro or pharma version |
| Storable SOPs |
More than 40, depends only on storage capacity |
| Connectivity |
Yes, 2 x USB, Ethernet |
| Interval operation: |
no |
| Vacuum: |
2,000 - 9,999 Pa / 20 - 99 mbar / 0.3 – 1.45 psi |
| Suitable for dry sieving: |
yes |
| Suitable for wet sieving: |
no |
| Including test certificate / can be calibrated: |
yes |
| Suitable sieve diameters: |
203 mm (200 mm with adapter) |
| Max. height of sieve stack: |
1 sieve (25 mm (1") / 50 mm ( 2")) |
| Accessories: |

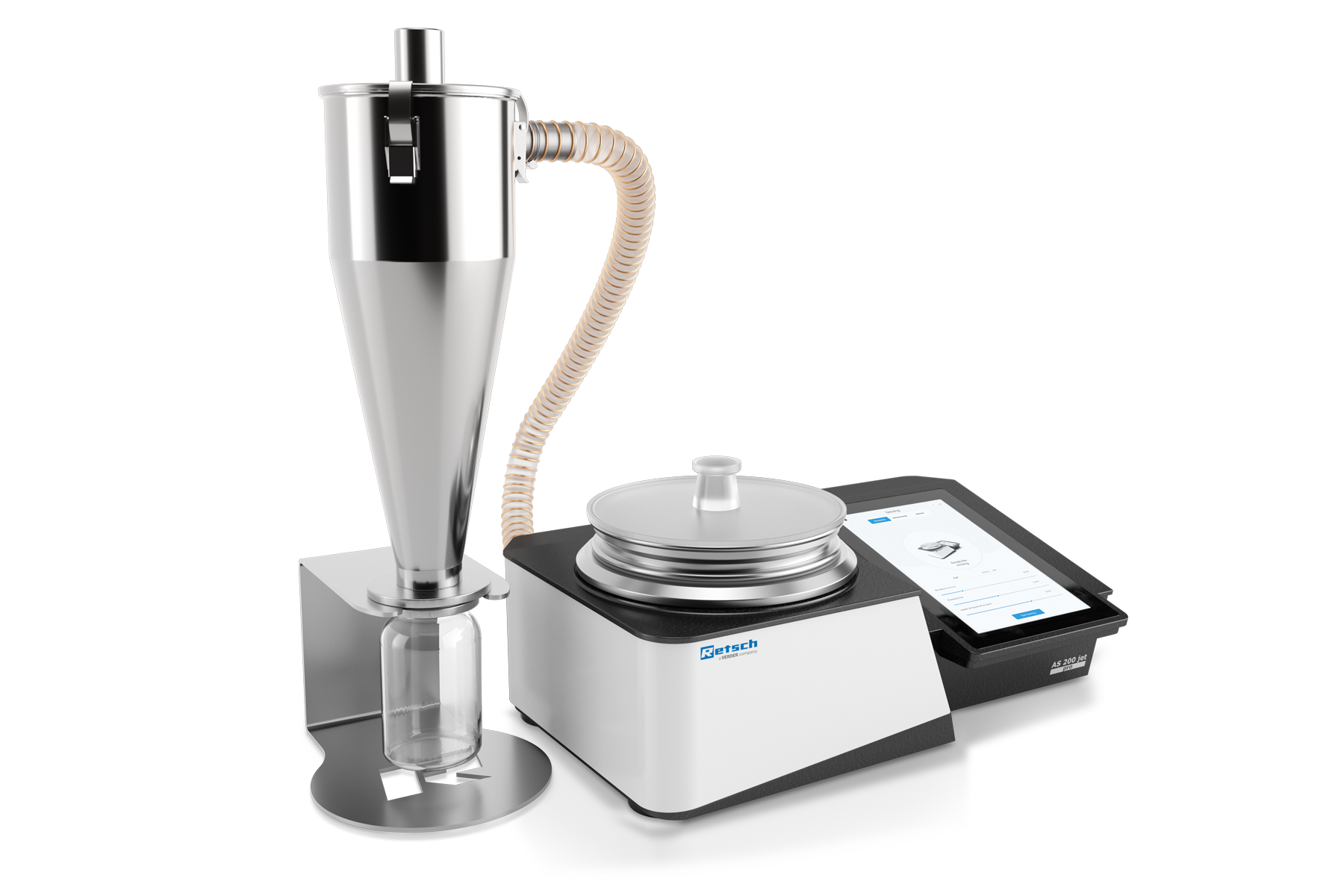

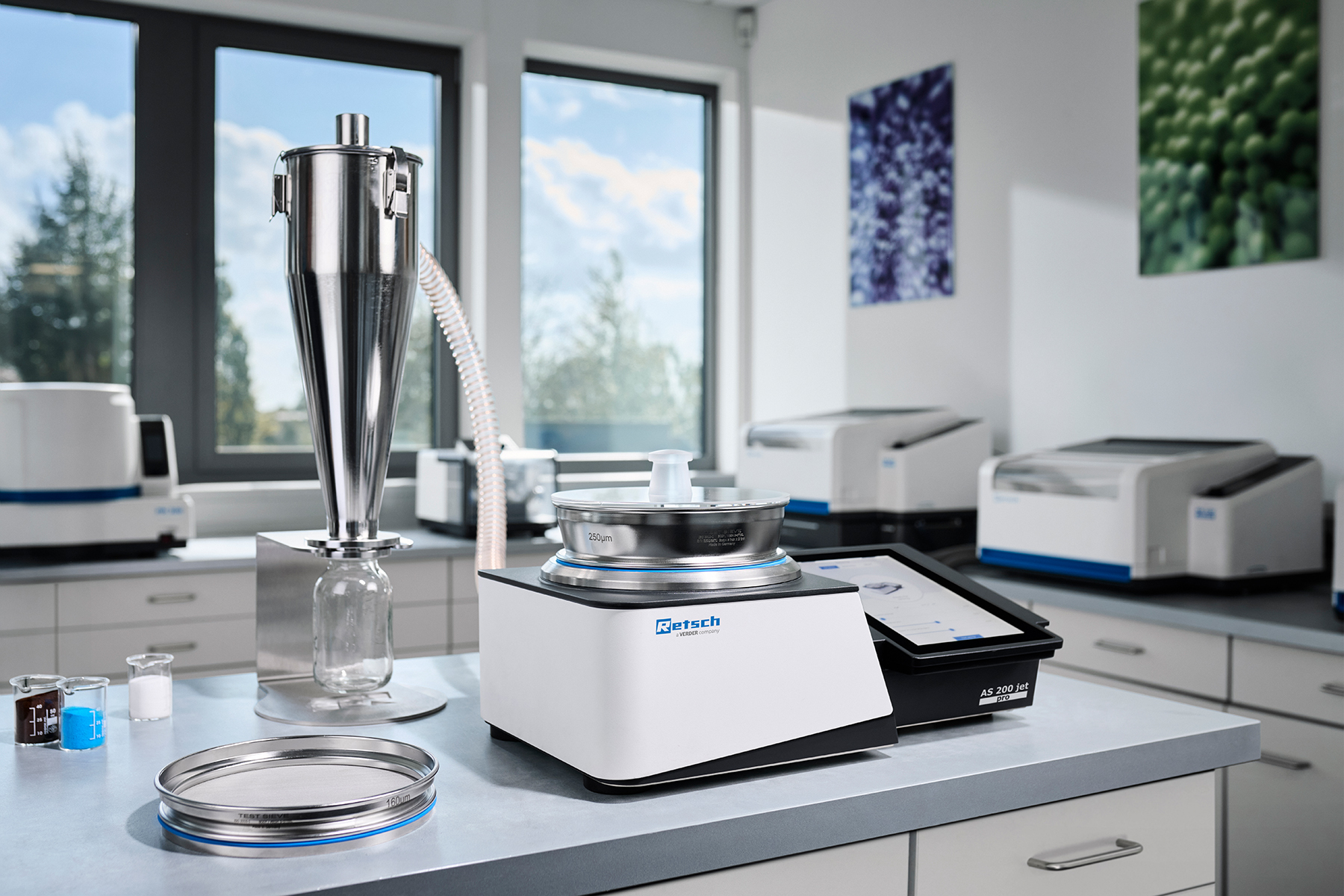

cyclone / external optional high precision balance |
| Electrical supply data: |
100-240 V, 50/60 Hz |
| Power connection: |
1-phase |
| W x H x D: |
516 x 180 x 404 |
| Net weight: |
~ 17 kg |
| Standards: |
CE |
Software features
| Graphical User Interface, guided sieving |
Yes |
| Mode of operation |
Fast sieving, manual sieving and methods |
| Languages |
German and English |
| Parameter units changeable |
Size: mm/µm/mesh/inch // Mass: g/kg // Time: s/min // Pressure: mbar/Pa/psi // Volume: ml/cl/l/cm3 |
| SOPs |
Yes, integrated in methods, more than 40 |
| Individual sample labelling |
Yes, for each sample, reference to method during data choice and in overview |
| Parameter setting per test sieve |
Yes |
| LIMS ready |
Yes |
| Teamviewer online support |
Yes |
| Screenshot function |
Yes |
| Back-up function |
Yes |
| Automatic storage of results |
Yes, in machine, auto report function, PDF document or to printer |
| Results shown, as table or graphs |
Yes |
| Different diagram types (linear or logar.) |
Yes, log/lin, log/log, lin/lin for x and y axis |
| Different diagram types |
Cumulative, RRSB, Histogram, density, residual distribution |
| Calculation of individual dx values |
More than 10 |
| Label naming |
ISO (q3/Q3/1-Q3/p3) or descriptive (density/total distribution/residual distribution/percent) |
| Overlay of results |
Yes, up to 10 // Curves, tables and overview |
| Individual scalable diagrams |
Yes, via zoom in or via setting of max. axis value |
| Highest precision thanks to |
Sieve-Check function, Plausibility test, Weighing-Assistant and Weigh-in tolerance, Calculation option for density, Filter function for sieve rows, TrendAnalysis for sieves and methods, Backweighing-Tolerance |
| Yearly calibration service |
Yes, optional |
| Connection of external balance (optional) |
Yes |
| Standard balance driver |
Yes, scale management for external scales, communication protocols for specific scales Kern, Sartorius, Mettler are stored. |
| Connectivity |
Connection to barcode scanners, printer, mouse and keypad |
Additional features for AS 200 jet pharma
| Software validation |
ISPE GAMP 5, EC GMP Annex 11 conform, AuditTrail acc. to FDA 21 CFR part 11 |
| User management |
Yes, free configurable levels, individual rights option for each user |
| Role and password management |
Yes |
| Audit-trail with E-signature |
Yes |
| Enforce audit trail comments |
yes |
| Generation/Export of user lists and daily reports |
Yes |
| Restore |
Yes |
