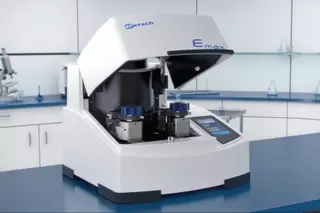

Vysoko výkonný guľový mlyn Emax Technické údaje
| Applications: | nano grinding, size reduction, homogenizing, mechanical alloying, colloidal milling, high energy comminution |
|---|---|
| Field of application: | agriculture, biology, chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material: | medium-hard, hard, brittle, fibrous - dry or wet |
| Size reduction principle: | impact, friction |
| Max. feed size: | < 5 mm |
| Final fineness: | < 80 nm |
| Batch size / feed quantity: | max. 2 x 45 ml |
| Speed at 50 Hz (60 Hz): | 300 - 2000 min-1 |
| Cooling: | controlled integrated water cooling / option: external chiller |
| Temperature control: | yes (min and max temperature may be defined) |
| No. of grinding stations: | 2 |
| Type of grinding jars: | with integrated safety closure devices |
| Material of grinding tools: | stainless steel, tungsten carbide, zirconium oxide |
| Grinding jar sizes: | 50 ml / 125 ml |
| Setting of grinding time: | 00:01:00 to 99:59:59 |
| Interval operation: | yes, with optional direction reversal |
| Interval time: | 00:01:00 to 99:59:59 |
| Pause time: | 00:01:00 to 99:59:59 |
| Storable SOPs: | 10 |
| Interface: | USB / LAN ( RJ45) |
| Drive: | 3-phase asynchronous motor with frequency converter |
| Drive power: | 2600 W |
| Electrical supply data: | 200-240 V, 50/60 Hz |
| Power connection: | 1-phase |
| Power consumption: | ~ 3100W (VA) |
| Protection code: | IP 30 |
| W x H x D closed: | 625 x 525 x 645 mm |
| Net weight: | ~ 120 kg |
| Standards: | CE |
| Patent / Utility patent: | Inclined Grinding bowls (US 8,042,754 B2) |
